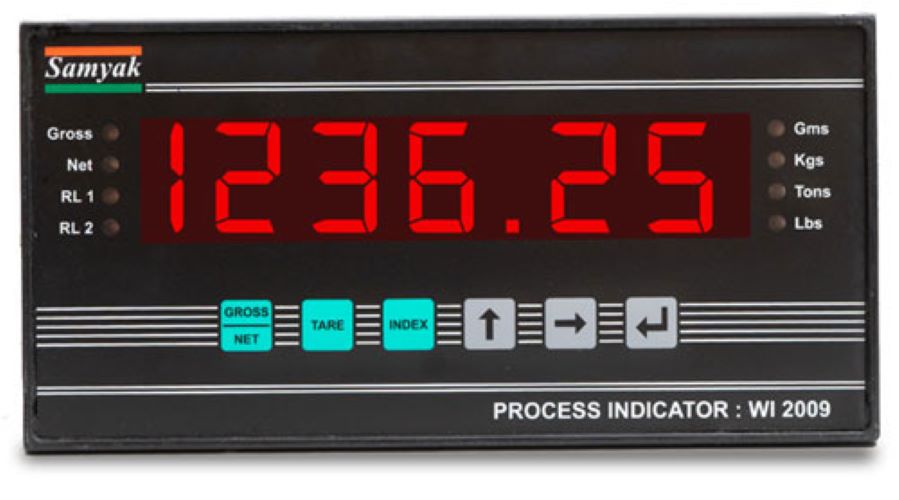

Weight Indicator WI 2009

Product Description

On-board high resolution ADC.

Filtering: Analog & Digital

Sampling: 15 readings/second

Power Supply: 110-230VAC, 50 Hz.

Display: 6-digit 16-segment 0.8 Red LED

Input: 4-wire Load cell, Up to Four Single Load cell with 300 Ohms Resistor

Output/Interface Options:

- Outputs: Four Relay outputs

- Retransmission: 4-20 mA/0-10V Proportional indicated weight

- RS-232/485 Serial Port for communication with remote display/ Printer/ Computer

- USB Port for Pen Drive

- Ethernet TCP/IP MODBUS

- WIFI Interface (Distance Less than 100 mtr)

Remote input for GROSS/NET, TARE and Zero functions

Key board: Six keys membrane like

Programmable Parameters:

- Decimal Point, Capacity, Display Resolution, Grad, Zero Track Band, Zero Range

Configuration Data are stored in serial NVRAM, Battery backup not required

Calibration through front keypad(Offset: Z & Span: S stored in NVRAM)

Different Password for Calibration & normal operation

Enclosure: Metallic, Powder coated, General Purpose, Panel Mounting type

Dimension:

- Outer: 192 mm (W) x 96 mm (H) x 110 mm (D)

- Cutout: 186 mm (W) x 92 mm (H)
