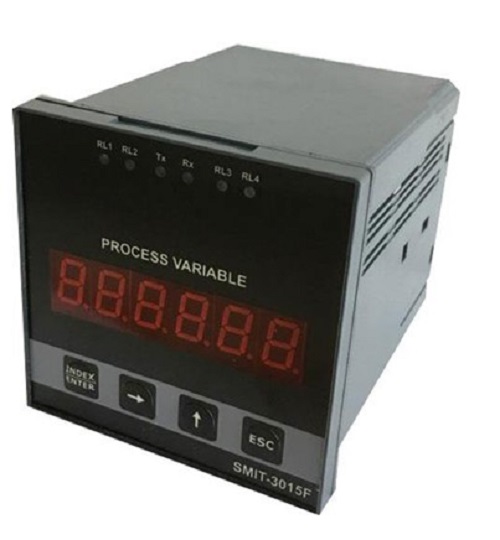

Weight Indicator SMIT 3015 F

Name: Weight Indicator SMIT 3015 F
Brand: SAMYAK INSTRUMENTATION PVT LTD
Price: 9500.0 INR
Availability: InStock

Price 9500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Weight Indicator SMIT 3015 F Specification

Current
4-20 Milliampere (mA)

Frequency
50 Hertz (HZ)

Output
4-20 mA, Relay, RS232/RS485 Modbus

Installation Type
Panel Mounting

IP Rating
IP20

Connectivity Type
Four Relay outputs (Batching or Alarm). Retransmission: 4-20 mA/0-10V Proportional indicated weight. RS-232/485 Serial Port for communication with remote display/ Printer/ Computer.

Display
6-digit 7-segment 0.56 Red LED

Mounting Type
Panel mounting

Protection Level
Other

Product Type
Microcontroller based

Power Rating
110-230 VAC

Working Temperature
0 to 50 C Celsius (oC)

Input
4-wire Load cell, Up to four Load cell with < 300 Ohms Resistance

Diameter
92 (W) x 92 (H) Millimeter (mm)

Supply Voltage
110-230 VAC Volt (v)

Operating Temperature
0-50 Celsius (oC)

Dimension (L*W*H)
96 mm (W) x 48 mm (H) x 110 mm (D) Millimeter (mm)

Weight
Less than 1 kg Kilograms (kg)

Display Type
LED

Material
Plastic general purpose

Warranty
1 year

Weight Indicator SMIT 3015 F Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
3 Week

Main Export Market(s)
South America, Asia, Australia, Central America, North America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Weight Indicator SMIT 3015 F

This is a microcontroller based Indicator unit. It is highly versatile, accurate and different from the conventional indicators. It displays analog signal (mV) input from the Loadcell into engineering values. With the help of the keypad and display, unit allows to set and modify various configuration parameters and calibration.

Features:

On-board high resolution ADC
Filtering: Analog & Digital
Sampling: 15 readings/second
Power Supply: 110-230VAC, 50 Hz/ 24VDC +/-10%
Input: 4-wire Load cell, Up to four Load cell with < 300 Ohms Resistance
Options: i) Four Relay outputs (Batching or Alarm). ii) Retransmission: 4-20 mA/0-10V Proportional indicated weight. iii) RS-232/485 Serial Port for communication with remote display/ Printer/ Computer
Digital/Remote inputs: GROSS/NET, TARE and Zero functions
Display: 6-digit 7-segment 0.56 Red LED
Key board: Four keys membrane like
Programmable Parameters: Decimal Point, Capacity, Display Resolution, Grad, Zero Track Band, Zero Range
Configuration Data are stored in serial NVRAM, Battery backup not required
Calibration through front keypad (Offset: Z & Span: S stored in NVRAM)
Different Password for Calibration & normal operation
Enclosure: Plastic General Purpose, Panel Mounting type
Termination/connectors: Detachable-Male/Female type
Dimension: i)Outer: 96 mm (W) x 96 mm (H) x 110 mm(D) ii)Cutout: 92 mm (W) x 92 mm (H)

Advanced Connectivity for Efficient Weighing

The SMIT 3015 F comes equipped with versatile relay outputs and retransmission signals for seamless integration into batching or alarm systems. Its RS-232/485 serial interface supports easy communication with external devices, ensuring reliable data transfer and centralized monitoring for industrial processes.

Compact & Robust Panel Mount Design

Engineered for convenience, the SMIT 3015 F fits easily into standard panels with its precise dimensions of 96mm x 48mm x 110mm. The durable build and concise form factor, combined with a bright 6-digit LED display, make installation versatile and the reading experience clear in various environments.

FAQ's of Weight Indicator SMIT 3015 F:

Q: How do I connect load cells to the Weight Indicator SMIT 3015 F?

A: The SMIT 3015 F supports up to four 4-wire load cells with total resistance under 300 Ohms. Simply wire the load cells according to the terminal labeling for stable and accurate weight readings.

Q: What is the benefit of the 4 relay outputs on this indicator?

A: The four relay outputs can be configured for batching or alarm functions. This allows you to automate processes, activate external devices, or signal alarms based on weight thresholds, enhancing productivity and safety in industrial applications.

Q: When should the RS-232/485 serial port be used?

A: The serial port should be used when you need to interface the indicator with a remote display, printer, or computer for data logging, remote monitoring, or integration into a larger control system.

Q: What is the process for panel mounting the SMIT 3015 F?

A: To panel mount the SMIT 3015 F, prepare a cut-out matching its dimensions (96 mm x 48 mm). Insert the device and secure it using the mounting brackets provided, ensuring proper ventilation and accessibility.

Q: Where is the ideal operating environment for this indicator?

A: The ideal environment is a location where the ambient temperature remains between 0 and 50C, and the indicator can be panel-mounted away from excessive moisture or vibration, ensuring optimal performance and longevity.
