Weight Indicator

On-board high resolution ADC.

Filtering: Analog & Digital

Sampling: 15 readings/second

Power Supply: 110-230VAC, 50 Hz.

Input: 4-wire Load cell, Up to Four Single Load cell with 300 Ohms Resistor

Display:

- 5-digit 7-segment Red LED

- 8-digit 7 segment Red LED

Options:

- Outputs: Four Relay outputs

- Retransmission: 4-20 mA/0-10V Proportional indicated weight

- RS-232/485 Serial Port for communication with remote display/Printer/ Computer

Remote input for GROSS/NET, TARE and Zero functions

Key board: Four keys membrane like

Programmable Parameters:

- Decimal Point, Capacity, Display Resolution, Grad, Zero Track Band, Zero Range

Configuration Data are stored in serial NVRAM, Battery backup not required

Calibration through front keypad(Offset: Z & Span: S stored in NVRAM)

Different Password for Calibration & normal operation

Enclosure: Metallic, Powder coated, General Purpose, Panel Mounting type

Dimension:

- Outer: 96 mm (W) x 96 mm (H) x 110 mm (D)

- Cutout: 92 mm (W) x 92 mm (H)

Advanced Monitoring Capability

The SMIT 1019 Flow Indicator Totaliser ensures excellent accuracy and real-time data tracking of flow parameters. Its dual-input compatibilitysupporting both pulse and analog signalsenables seamless integration into diverse process environments, making it ideal for critical industrial sectors requiring robust flow measurement.


User-Friendly LED Display

Equipped with a bright and informative LED display, operators can easily view critical flow readings at a glance. The clear visual output helps reduce human error, provides instant diagnostics, and streamlines ongoing process monitoring across various industries, from chemical plants to wastewater facilities.


Flexible Installation and Application

This devices design accommodates straightforward integration into existing process systems. Its robust compatibility spans multiple input types, serving the needs of water management, food and beverage, and oil and gas industries alike, ensuring a comprehensive and hassle-free installation experience.

Input: Load Cell, Proximity (PNP type)

Digital Inputs: Two (Potential free contacts)

Display: 20 Characters x 4 Line LCD with back light

Display Parameters:

- Flow Rate (Tons/Hr), Conveyor Speed (Mtr/Sec.), Net Weight (kg),

- Total Weight (Tons), Gross Weight (kg)

Non-resettable eight digit Totaliser (Reset possible only thro' Password)

Keypad: Six keys membrane keypad

Power Supply: 230V +/- 10% AC

Proximity power supply: +24V DC/50 mA

Output Options:

- 0 to 10 V DC (Proportional to Flow rate)

- Relay: One for alarm condition

- Serial interface: RS232 or RS485 (Optional)

Scaling method: Linear (Multiplying factors: Programmable)

Configuration Data are stored in serial NVRAM, Battery backup not required

Calibration through front keypad (Offset: Z & Span: S stored in NVRAM)

Different Password for Calibration & normal operation

Enclosure: Metallic, Powder coated, General Purpose, Panel Mounting type

Dimension:

- Outer: 192 mm (W) x 96 mm (H) x 110 mm (D)

- Cutout: 186 mm (W) x 92 mm (H)

On-board high resolution ADC.

Filtering: Analog & Digital

Sampling: 15 readings/second

Power Supply: 110-230VAC, 50 Hz.

Display: 6 Groups of 5-digit 7-segment 0.5 Red LED

Input: 4-wire Load cell, Up to Four Single Load cell with 300 Ohms Resistor

Output/Interface Options:

- RS-232/485 Serial Port for communication with remote display/ Printer/ Computer

- USB Port for Pen Drive

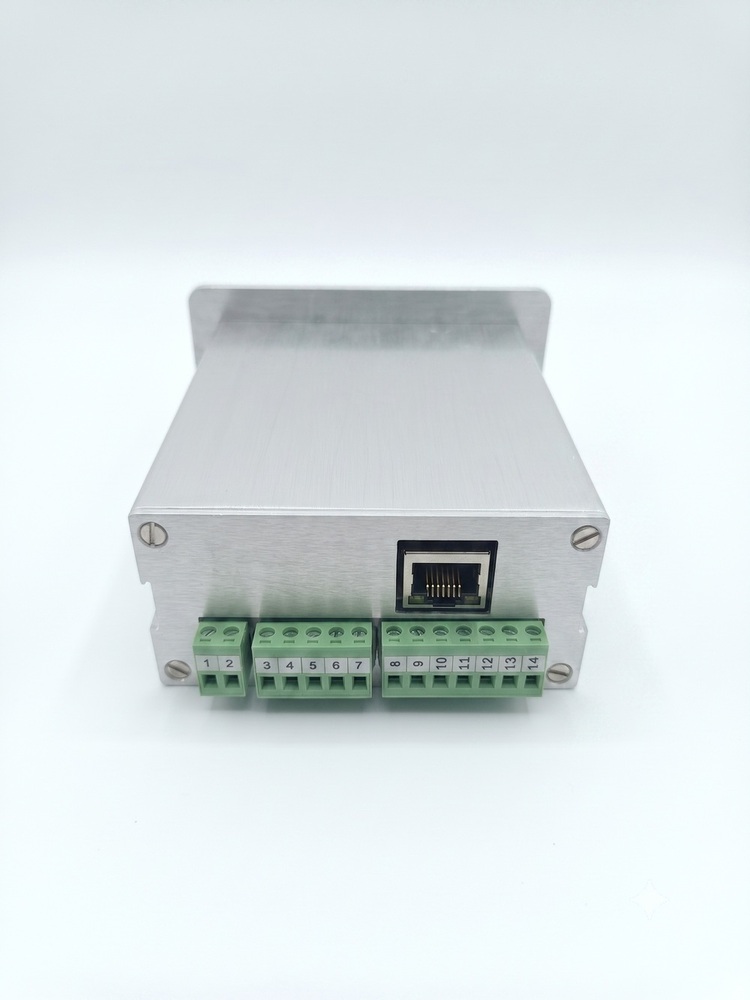

- Ethernet TCP/IP MODBUS

- WIFI Interface (Distance Less than 100 mtr)

Remote input for GROSS/NET, TARE and Zero functions

Key board: Eight keys membrane like

Programmable Parameters:

Decimal Point, Capacity, Display Resolution, Grad, Zero Track Band, Zero Range

Configuration Data are stored in serial NVRAM, Battery backup not required

Calibration through front keypad(Offset & Span stored in NVRAM)

Different Password for Calibration & normal operation

On-board high resolution ADC

Filtering: Analog & Digital

Sampling: 15 readings/second

Power Supply: 110-230VAC, 50 Hz/ 24VDC +/-10%

Input: 4-wire Load cell, Up to four Load cell with < 300 Ohms Resistance

Options:

- Four Relay outputs (Batching or Alarm)

- Retransmission: 4-20 mA/0-10V Proportional indicated weight

- RS-232/485 Serial Port for communication with remote display/ Printer/ Computer

Digital/Remote inputs: GROSS/NET, TARE and Zero functions

Display: 6-digit 7-segment 0.56 Red LED

Key board: Four keys membrane like

Programmable Parameters:

- Decimal Point, Capacity, Display Resolution, Grad, Zero Track Band, Zero Range

Configuration Data are stored in serial NVRAM, Battery backup not required

Calibration through front keypad (Offset: ˜Z„ & Span: ˜S„ stored in NVRAM)

Different Password for Calibration & normal operation

Enclosure: Plastic General Purpose, Panel Mounting type

Termination/connectors: Detachable-Male/Female type

Dimension:

- Outer: 96 mm (W) x 96 mm (H) x 110 mm(D)

- Cutout: 92 mm (W) x 92 mm (H)

This is a microcontroller based Indicator unit. It is highly versatile, accurate and different from the conventional indicators. It displays analog signal (mV) input from the Loadcell into engineering values. With the help of the keypad and display, unit allows to set and modify various configuration parameters and calibration.

Features:

• On-board high resolution ADC
• Filtering: Analog & Digital
• Sampling: 15 readings/second
• Power Supply: 110-230VAC, 50 Hz/ 24VDC +/-10%
• Input: 4-wire Load cell, Up to four Load cell with < 300 Ohms Resistance
• Options: i) Four Relay outputs (Batching or Alarm). ii) Retransmission: 4-20 mA/0-10V Proportional indicated weight. iii) RS-232/485 Serial Port for communication with remote display/ Printer/ Computer
• Digital/Remote inputs: GROSS/NET, TARE and Zero functions
• Display: 6-digit 7-segment 0.56 Red LED
• Key board: Four keys membrane like
• Programmable Parameters: Decimal Point, Capacity, Display Resolution, Grad, Zero Track Band, Zero Range
• Configuration Data are stored in serial NVRAM, Battery backup not required
• Calibration through front keypad (Offset: Z & Span: S stored in NVRAM)
• Different Password for Calibration & normal operation

• Enclosure: Plastic General Purpose, Panel Mounting type
• Termination/connectors: Detachable-Male/Female type
• Dimension: i)Outer: 96 mm (W) x 96 mm (H) x 110 mm(D) ii)Cutout: 92 mm (W) x 92 mm (H)

On board 24-bit ADC is provided for Digitizing Analog Input.

Filtering: Analog & Digital

Sampling speed: 15 readings/second

Power Supply: 24 VDC / 230 VAC

Input: 4-wire Load cell, Up to Four Single Load cell with 300 Ohms Resistor

Remote input for GROSS/NET, TARE and Zero functions

Display: 6-digit 7-segment 0.56 Red LED

Decimal position: Selectable

Key board: Four keys membrane like

Programmable Parameters:

Decimal Point, Capacity, Display Resolution, Grad, Zero Track Band, Zero Range

Configuration Data are stored in serial NVRAM, Battery back up not required

Calibration through software (Offset: Z& Span: S stored in NVRAM)

Optional:

- Serial Port for communication with the remote display/Printer/Computer using RS-485/RS-232

- Outputs: One Digital output (opto isolator)

- Retransmission: 4-20 mA/0-10V Proportional indicated weight

Enclosure: Plastic, General Purpose, Panel Mounting type

Dimension:

- Outer: 96 mm (W) x 48 mm (H) x 120 mm (D)

- Cut-out: 92 mm (W) x 44 mm (H)

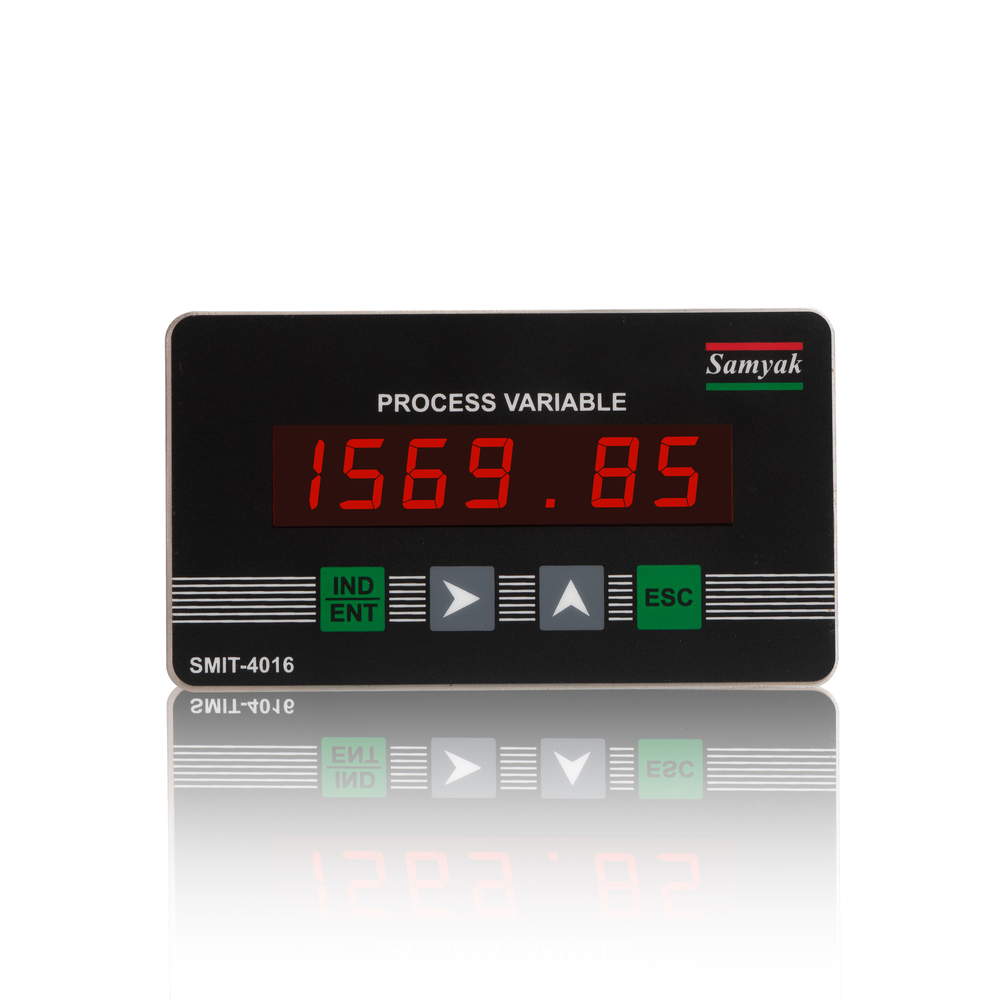

Display: 6 Digits, 7 segments RED LED, 0.56 inch height

Keyboard: 4 Keys (Index, Up arrow, side arrow, Esc) Membrane

Decimal Point: Selectable: 00000.0, 0000.00, 000.000 (XXXXX.X, XXXX.XX, XXX.XXX)

Programmable parameters: Capacity, Display Resolution, Grad, Zero Track Band, Zero Range

EEPROM/Flash Memory: Configuration Data are stored in serial EEPROM/Flash RAM and Battery backup not required

Analog to Digital Converter

Type: 24bit, (Delta-Sigma with integrated analogue and digital filter)

Conversion Rate: 15 measurement values per sec

Resolution: Internal up to 16 million counts; display up to 10,000 counts

SCALE CALIBRATION AND FUNCTIONS

Calibration: Calibration with weight

Digital filter: Step width : 0,1,2,5 Round OFF : 1,2,5 Moving Average : 0 to 30

Weighing functions: Tare, zero, auto zero tracking, auto-zero at power-up, auto-net at power-up

Linearity: Within 0.01 % F.S.

Load cells

Excitation: 5 V DC at 58...1 200 ohm, max. 100 mA

Number of load cells: Up to 8 load cells (350 ohm) or 18 load cells (1 100 Ohm) in parallel

Connection: 4-wire technology

Power Supply: 12...28 V DC, max. 300 mA / 110-230VAC (Factory configured)

ENVIRONMENT AND ENCLOSURE

Operation Temperature & humidity: -10 C to +50 C; 85% RH max, non-condensing

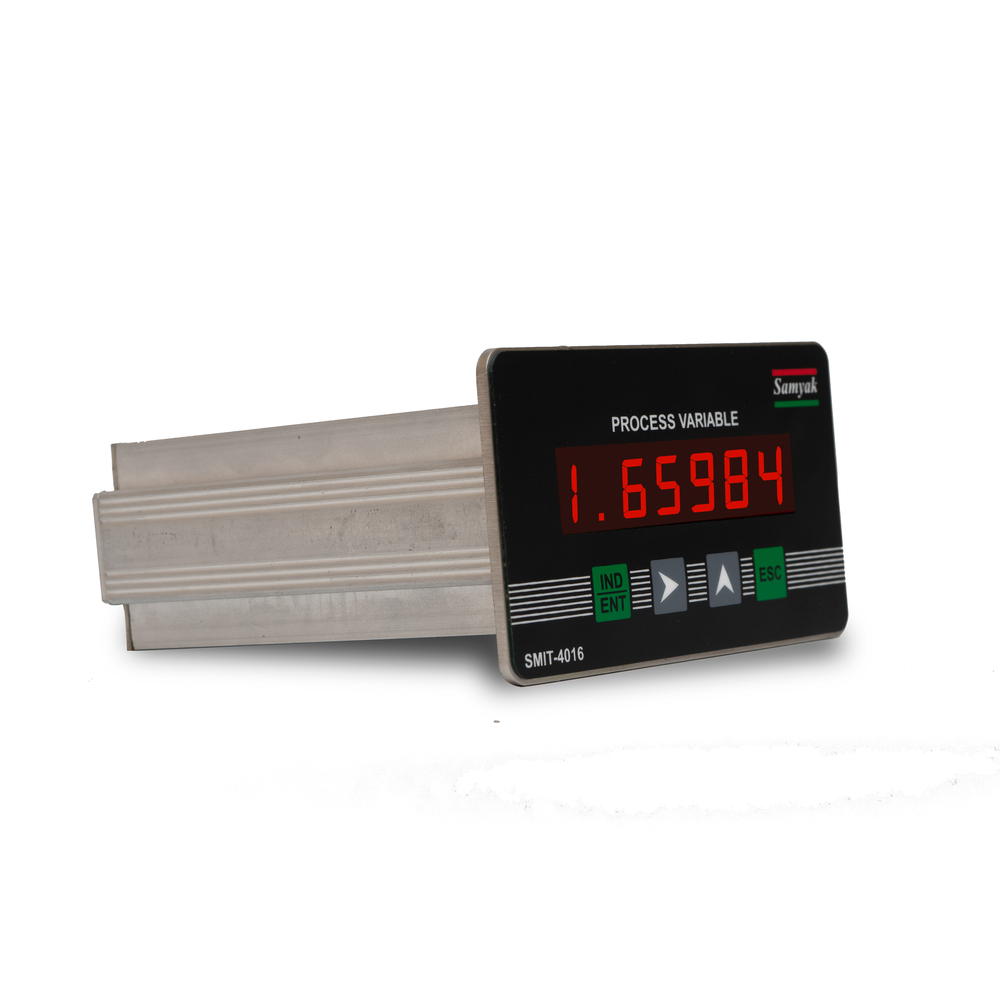

Housing & Protection: Panel mount, Aluminum Extruded, SS Front & Back

Dimensions & Weight: 48 x 96 x 110 mm (W x H x D), 0.5 kg

Cut-out: 92 mm (W) x 44 mm (H)

Serial Interface: One Port Factory configured for communication with remote display/Printer/Computer using RS-485/RS-232 (Factory configured)

Baud rate: 1200 to 115 200 baud

Digital Input: Two digital inputs, Isolated

Remote input for GROSS/NET, TARE and Zero functions programmable

Output: UP to 2 relays output (Batching or Alarm selectable)

Contact rating:

Transistor Outputs: 2 (Open Collector: 24 V DC, max. 100 mA), (Isolated)

ANALOG OUTPUT: 4-20 mA, 0-20 mA, 0-10 V or 0-5 V, 16 bit (Isolated)

Input: 0-1 VDC, Proximity (PNP type)

Digital Inputs: Two (Potential free contacts)

Display: 14 Digit 7-segment 0.56 Red LED display organized in three groups.

- Aggregate Rate (Tons/Hour) : 4 Digits

- Conveyor Speed (Meter/Sec) : 3 Digits

- Total aggregate (Tons) : 8 Digits

Non-resettable eight digit Totaliser (Reset possible only thro„ Password)

Keypad: Eight keys membrane keypad

Discrete LEDs: Two

Power Supply: 230V +/- 10% AC

Proximity power supply: +24V DC/50 mA

Output Options: 0 to 10 V DC

Relay: One for alarm condition

Serial interface: RS232 or RS485 (Optional)

Scaling method: Linear (Multiplying factors: Programmable)

Warm up time: 10 Minutes

Accuracy: 0.1% of FS +/- 1 Digit

Enclosure: Metalised DIN standard, Panel Mounting type

Dimensions: Outer: 144 mm x 144 mm x 120 mm

Panel Cutout: 138 mm x 138 mm

High Visibility and Accurate Measurement

With its 14-digit, 0.56-inch 7-segment red LED display, the Belt Weighing Indicator 101 delivers outstanding readability for conveyor weight data. Accurate to fine increments, it aids plant operators in real-time monitoring and process control. Engineered for reliability, it adapts to diverse industrial environments where precise weight measurement is vital.


Flexible Connectivity and Easy Integration

The indicator supports RS232 as standard and offers RS485 connectivity as an option, ensuring compatibility with modern automation systems. Its straightforward panel mounting design and standardized input/output voltages simplify installation and setup, minimizing operational disruption and maintenance demand.


Durable and Compact Design for Industrial Applications

Encased in a sturdy 144 x 144 x 120 mm panel-mount enclosure, the Belt Weighing Indicator 101 is lightweight (less than 1 kg) and rugged. Manufactured in India, it ably withstands the rigors of demanding environments and requires minimal space, making it ideal for both upgrades and new installations.

On-board high resolution ADC.

Filtering: Analog & Digital

Sampling: 15 readings/second

Power Supply: 110-230VAC, 50 Hz.

Display: 6-digit 16-segment 0.8 Red LED

Input: 4-wire Load cell, Up to Four Single Load cell with 300 Ohms Resistor

Output/Interface Options:

- Outputs: Four Relay outputs

- Retransmission: 4-20 mA/0-10V Proportional indicated weight

- RS-232/485 Serial Port for communication with remote display/ Printer/ Computer

- USB Port for Pen Drive

- Ethernet TCP/IP MODBUS

- WIFI Interface (Distance Less than 100 mtr)

Remote input for GROSS/NET, TARE and Zero functions

Key board: Six keys membrane like

Programmable Parameters:

- Decimal Point, Capacity, Display Resolution, Grad, Zero Track Band, Zero Range

Configuration Data are stored in serial NVRAM, Battery backup not required

Calibration through front keypad(Offset: Z & Span: S stored in NVRAM)

Different Password for Calibration & normal operation

Enclosure: Metallic, Powder coated, General Purpose, Panel Mounting type

Dimension:

- Outer: 192 mm (W) x 96 mm (H) x 110 mm (D)

- Cutout: 186 mm (W) x 92 mm (H)

On-board high resolution ADC.

Filtering: Analog & Digital

Sampling: 15 readings/second

Power Supply: 12 VDC or 24 VDC or 110-230VAC, 50 Hz.

Input: 4-wire Load cell, Up to Four Single Load cell with 300 Ohms Resistor

Remote input for GROSS/NET, TARE and Zero functions

Display: 6-digit 7-segment 0.56 inch Red LED

Key board: Four keys membrane like

Programmable Parameters:

Decimal Point, Capacity, Display Resolution, Grad, Zero Track Band, Zero Range

Configuration Data are stored in serial NVRAM, Battery backup not required

Calibration through front keypad (Offset: Z & Span: S stored in NVRAM)

Different Password for Calibration & normal operation

Options:

- RS-232/485 Serial Port for communication with remote display/ Printer/ Computer

- Retransmission: 4-20 mA/0-10V Proportional indicated weight

- Outputs: Four Relay outputs (Batching or Alarm)

Enclosure: Metallic, Powder coated, General Purpose, Panel Mounting type

Dimension:

- Outer: 96 mm (W) x 96 mm (H) x 110 mm(D)

- Cutout: 92 mm (W) x 92 mm (H)

This is a DIN rail mount unit.

It can be field mounted near load cell. As signal isamplified and than transmitted from field, it drastically reduces chances ofnoise pick up.

Output of the amplifier is linearly proportional toweight applied on the sensor.

Operating voltage: 24 VDC / 230 VAC

Input: Load cell (4 wires)

Excitation voltage: 10VDC

Operating temperature range: 0 to 60 Deg Cent

Accuracy better than 0.5% of Full scale

• Output:

0-20 mA/4-20mA/0 to 1VDC/0-10VDC/0-5VDC (Factoryconfigured)

Enclosure: DIN Rail mounting type, Plastic

Applications:

Weighing systems

Tension Measurement Systems

It can be field mounted near load cell. As the signal is amplified and than transmitted from the field, it drastically reduces the chances ofnoise pick up.

The output of the amplifier is linearly proportional to the weight applied on the sensor.

Operating voltage: 24 VDC

Input: Load cell (4 wires)

Excitation voltage: 10VDC

Operating temperature range: 0 to 60 Deg Cent

Accuracy better than 0.5% of Full scale

Output:

0-20 ma/4-20mA/0 to 1VDC/0-10VDC/0-5VDC (Factoryconfigured)

Enclosure: DIN Rail mounting type, Plastic

Applications:

Weighing systems

Tension measurement systems

Input: Load cell (Up to Two in parallel)

Excitation: 10 VDC

Control Output: Analog 0 to 5VDC

Operating voltage: 24VDC +/-10%

Display: 4-digit 7-segment, 0.56 inch red LED

Keyboard: 4-keys

Digital Input: Auto/Stop mode enable from Front

Enclosure: Panel mount, General purpose, Metallic

Dimension: Bazel: 96 x 96 x 100 mm (D)

Cut-out: 92 x 92 mm

FUNCTIONAL DESCRIPTION:

This unit will provide excitation to Loadcell. It will support up to two load cells.

Unit accepts analog input signal from load cells.

Based on Loadcell input, current value of tension will be displayed.

User will be able to set desired value of tension as set point. Control parameter: P, I & D will be settable.

In auto mode, unit will generate control output: 0 to 5VDC using PID algorithm.

This output can be used to control tension using breaking system.

Visual indication of control value will be available on front plate.

When Stop is pressed, control output will be set to Zero.

User will be able to set desired value of control output.

On-board high resolution ADC.

Filtering: Analog & Digital

Sampling: 15 readings/second

Power Supply: 110-230VAC, 50 Hz.

Input: 4-wire Loadcell, Upto Four Single Load cell with 300 Ohms Resistor

Options:

- Outputs: Six Relay outputs

- Retransmission: 4-20 mA/0-10V Proportional indicated weight

- RS-232/485 Serial Port for communication with remote display/Printer/ Computer

- USB Port for Pen Drive

Remote input for GROSS/NET, TARE and Zero functions

Display: 20 Character x 4 Line LCD with back lit

Key board: Six keys membrane like

Programmable Parameters:

Decimal Point, Capacity, Display Resolution, Grad, Zero Track Band, Zero Range

Configuration Data are stored in serial NVRAM, Battery back up not required

Calibration through front keypad (Offset: Z & Span: S stored in NVRAM)

Different Password for Calibration & normal operation

Enclosure: Metallic, Powder coated, General Purpose, Panel Mounting type

Dimension:

- Outer: 192 mm (W) x 96 mm (H) x 110 mm (D)

- Cutout: 186 mm (W) x 92 mm (H)

Versatile Display and Intuitive Interface

The WI 2013L offers a large, backlit LCD display with 20 characters across four lines, conveniently presenting weight data and status. This setup is ideal for environments where quick, clear readings are essential. The user-friendly interface allows for straightforward operation, minimizing training time and easing integration into existing systems.


Robust Construction and Easy Installation

Constructed from metallic, powder-coated material, this weight indicator is durable, resisting corrosion and everyday wear. Its lightweight structure and panel mounting capability make installation straightforward. With a precise cutout size (186 mm x 92 mm) and compact dimensions, it fits seamlessly into standard industrial panels.


Flexible Connectivity and Sensor Support

WI 2013L accommodates input from both load cells and proximity sensors (PNP type), adapting to various weighing processes. The optional RS232 or RS485 connectivity ensures efficient data transfer to external devices, catering to diverse automation and monitoring needs in modern industrial setups.
