Weight Indicator WI 2013L

Name: Weight Indicator WI 2013L
Brand: SAMYAK INSTRUMENTATION PVT LTD
Price: 20000.0 INR
Availability: InStock

Price 20000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

Weight Indicator WI 2013L Specification

Display
20 Characters x 4 Line LCD with back light

Installation Type
Panel

Connectivity Type
RS232 or RS485 (Optional)

Mounting Type
Panel

Product Type
It is based on a popular 8-bit microcontroller

Input
Load Cell, Proximity (PNP type)

Diameter
Cutout: 186 mm (W) x 92 mm (H) Millimeter (mm)

Dimension (L*W*H)
Outer: 192 mm (W) x 96 mm (H) x 110 mm (D) Millimeter (mm)

Display Type
20 Characters x 4 Line LCD with back light

Weight
Less than 1kg Kilograms (kg)

Warranty
1 year

Material
Metallic, Powder coated

Weight Indicator WI 2013L Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Week

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Weight Indicator WI 2013L

On-board high resolution ADC.

Filtering: Analog & Digital

Sampling: 15 readings/second

Power Supply: 110-230VAC, 50 Hz.

Input: 4-wire Loadcell, Upto Four Single Load cell with 300 Ohms Resistor

Options:

- Outputs: Six Relay outputs

- Retransmission: 4-20 mA/0-10V Proportional indicated weight

- RS-232/485 Serial Port for communication with remote display/Printer/ Computer

- USB Port for Pen Drive

Remote input for GROSS/NET, TARE and Zero functions

Display: 20 Character x 4 Line LCD with back lit

Key board: Six keys membrane like

Programmable Parameters:

Decimal Point, Capacity, Display Resolution, Grad, Zero Track Band, Zero Range

Configuration Data are stored in serial NVRAM, Battery back up not required

Calibration through front keypad (Offset: Z & Span: S stored in NVRAM)

Different Password for Calibration & normal operation

Enclosure: Metallic, Powder coated, General Purpose, Panel Mounting type

Dimension:

- Outer: 192 mm (W) x 96 mm (H) x 110 mm (D)

- Cutout: 186 mm (W) x 92 mm (H)

Versatile Display and Intuitive Interface

The WI 2013L offers a large, backlit LCD display with 20 characters across four lines, conveniently presenting weight data and status. This setup is ideal for environments where quick, clear readings are essential. The user-friendly interface allows for straightforward operation, minimizing training time and easing integration into existing systems.

Robust Construction and Easy Installation

Constructed from metallic, powder-coated material, this weight indicator is durable, resisting corrosion and everyday wear. Its lightweight structure and panel mounting capability make installation straightforward. With a precise cutout size (186 mm x 92 mm) and compact dimensions, it fits seamlessly into standard industrial panels.

Flexible Connectivity and Sensor Support

WI 2013L accommodates input from both load cells and proximity sensors (PNP type), adapting to various weighing processes. The optional RS232 or RS485 connectivity ensures efficient data transfer to external devices, catering to diverse automation and monitoring needs in modern industrial setups.

FAQs of Weight Indicator WI 2013L:

Q: How do I install the Weight Indicator WI 2013L into a panel?

A: To install the WI 2013L, prepare a cutout measuring 186 mm (W) x 92 mm (H) in your panel. Insert the indicator and secure it as per the provided instructions. The outer dimensions allow for a compact and secure fit, making it suitable for most standard panel enclosures.

Q: What types of sensors are compatible with the WI 2013Ls input?

A: The WI 2013L supports input from load cells and proximity sensors, specifically PNP type. This allows for versatile integration depending on your weighing and automation requirements.

Q: When should I use the RS232 or RS485 connectivity options?

A: You may use RS232 or RS485 connectivity (optional) when you need to interface the weight indicator with data loggers, PLCs, or centralized control systems for efficient data communication in automation processes.

Q: What are the main advantages of the LCD display on the WI 2013L?

A: The large 20-character by 4-line LCD with backlight offers high visibility and clear reading of data, even in low-light environments. This enhances operational efficiency by minimizing errors during monitoring.

Q: Where can I source the Weight Indicator WI 2013L?

A: The WI 2013L is manufactured, exported, and supplied by reputable companies based in India. You can contact local industrial equipment suppliers or reach out to the manufacturer directly for purchase and support.

Q: How does the WI 2013L ensure durability in industrial environments?

A: Its metallic, powder-coated construction resists corrosion and damage from daily use, ensuring a long service life. The device is lightweight yet robust, making it suitable for demanding workplace conditions.

Q: What warranty is offered, and what does it cover?

A: The WI 2013L comes with a one-year warranty, covering manufacturing defects and faults under normal operating conditions. This provides assurance and support for your investment.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Weight Indicator Category

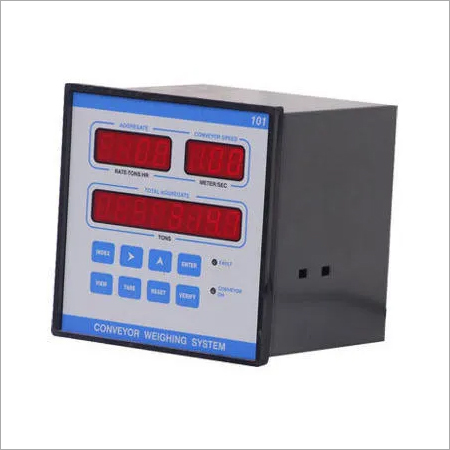

Belt Weighing Indicator WI 2013L
