Microcontroller Based Digital Counter

Get a Price/Quote

6 Digits Counter

Price: 8499.0 INR /Unit

Request To Call Back

Product Details:

Delivery Time 3 Week
Dimension (L*W*H) 96 mm (W) x 48 mm (H) x 130 mm (D) Millimeter (mm)
Display Type Six Digit 0.56" 7-Segment Red LED
Machine Weight 1 Kilograms (kg)
Main Domestic Market All India
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Africa, Middle East
Minimum Order Quantity 1
Mounting Type Panel
Price 8499.0 INR
Product Type Microcontroller based
Unit of Measure Piece/Pieces
Unit of Price Unit/Units
Weight 1 Kilograms (kg)

INPUT: Potential free contact/Proximity/Limit Switch: PNP or NPN

DISPLAY: 6-digit 7-Segment Red LED Display

Non-resetable 6-digit counter saved in NVRAM.

All parameters are stored in non-volatile ram.

Reset: Through Front Key or remote input

Counting: Up/Down programmable

Front Reset: Enable/disable thro' Keyboard or lock on back panel

Preset: Enable/Disable thro' Keypad

KEYPAD: Four Keys Membrane type Keypad

POWER SUPPLY: 110-230VAC / 24 VDC / 24 VAC

OPTIONS:

- One Preset Relay

- Serial: RS232 or RS485

DIMENSIONS: 96 mm (W) X 48 mm (H) x 130 mm (D)

Reliable, Clear Counting Solution

With its bright red 7-segment LED display, this six-digit counter ensures clear readings even in demanding environments. Its robust construction, combined with panel mounting capability, fosters ease of integration into existing equipment. Precision engineering makes it suitable for various industrial, laboratory, or automation tasks where accurate counting is crucial.

Versatile and Easy Installation

Installation is straightforward due to its standardized panel mounting design and compact dimensions. Weighing just 1 kilogram, it is lightweight and convenient to handle for technicians and operators. The counter supports seamless usage across broad industrial applications, improving workflow efficiency and system monitoring.

FAQ's of 6 Digits Counter:

Q: How do I install the 6 Digits Counter with a panel mounting type?

A: The counter is designed for panel mounting, which involves cutting an appropriate opening in your control panel (96 mm x 48 mm) and securing the device in place with the provided hardware. Detailed installation guidelines are included in the product manual.

Q: What benefits does the 0.56" 7-segment red LED display offer?

A: The bright red LED segments enhance visibility in low-light or high-glare environments, ensuring clear, accurate readings of counts at a glance from various angles and distances.

Q: Where can this 6 Digit Counter be used most effectively?

A: This counter excels in industrial automation, production lines, laboratory experiments, and any application that requires reliable and precise counting of pulses or events.

Q: What is the process for resetting or programming the display?

A: Most models include user-friendly reset and programming options, usually via front panel buttons or remote input terminals. Specific instructions are detailed in the supplied documentation.

Q: How does using this counter improve productivity in industrial settings?

A: Accurate and easily readable counting helps reduce errors, enhance operational efficiency, and streamline monitoring, ultimately contributing to more consistent output and simplified troubleshooting.

Q: What are the dimensions and weight of this counter for compatibility checks?

A: The unit measures 96 mm in width, 48 mm in height, and 130 mm in depth, weighing approximately 1 kilogram, making it suitable for integration into most industrial panels without significant modification.

Send Inquiry

Get a Price/Quote

4 Digits Counter

Price: 8500.0 INR /Piece

Request To Call Back

Product Details:

Application Digital counter displays feature bright LED digits for clear, highly visible readouts, easily viewable from a distance. They are ideal for applications such as Production tracking Machine cycle monitoring Batch processing People counting Event tracking.
Delivery Time 3 Week
Dimension (L*W*H) Cutout size: 92 mm (W) x 44 (H) mm Millimeter (mm)
Display Type Four Digit 0.56" 7-Segment Red LED
Interface Type RS-232/RS-485 (MODBUS)
Machine Weight Less than 1kg Kilograms (kg)
Main Domestic Market All India
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Minimum Order Quantity 1
Mounting Type Panel
Power +24V DC +/- 5%, 50 mA Milliampere (mA)
Price 8500.0 INR
Product Type Microcontroller based
Unit of Measure Piece/Pieces
Unit of Price Piece/Pieces
Usage Digital counter displays feature bright LED digits for clear, highly visible readouts, easily viewable from a distance. They are ideal for applications such as, Production tracking, Machine cycle, monitoring, Batch processing, People counting, Event tracking.
Voltage 0-5V/1-5V (factory set) Volt (v)
Weight Less than 1kg Kilograms (kg)

INPUT: Potential free contact/Proximity/Limit Switch: PNP or NPN

DISPLAY: 4-digit 7-Segment Red LED Display

Non-resetable 4-digit counter saved in NVRAM.

All parameters are stored in non-volatile ram.

Reset: Through Front Key or remote input

Counting: Up/Down programmable

Front Reset: Enable/disable thro' Keyboard or lock on back panel

Preset: Enable/Disable thro' Keypad

KEYPAD: Four Keys Membrane type Keypad

POWER SUPPLY: 110-230VAC / 24 VDC / 24 VAC

OPTIONS:

- One Preset Relay

- Serial: RS232 or RS485

DIMENSIONS: 96mm (W) X 48 mm (H) x 120 mm (D)

Reliable Panel Mounting for Industrial Use

Designed with an optimal cutout size of 92 mm by 44 mm, this digital counter offers straightforward panel mounting. Its robust build and compact size ensure a secure fit within machine panels and control boxes, streamlining installation in manufacturing, processing, and event environments.

Exceptional Display and Power Efficiency

The bright four-digit, red LED display allows for unmistakable readout clarity, vital for quick checks during high-speed operations. Operating on +24V DC with only 50mA current consumption, it is engineered for energy efficiency and long-term operation in continuous use settings.

Versatile Applications Across Industries

Whether it's for production tracking, machine cycle monitoring, batch processing, or people counting, this digital counter adapts seamlessly to a breadth of monitoring and tracking applications. Its connectivity via MODBUS-compatible RS-232/RS-485 makes integration with automated systems effortless.

FAQ's of 4 Digits Counter:

Q: How is the 4 Digits Counter installed in a panel?

A: The unit is engineered for easy panel mounting, fitting into a cutout size of 92 mm (W) x 44 mm (H). Secure the counter using the provided mounting hardware to ensure a flush and stable installation in your control panel.

Q: What voltage input options are available for this counter?

A: This device supports input voltage ranges of either 0-5V or 1-5V, which are factory set according to your specifications. It is powered by a stable +24V DC supply.

Q: When should businesses consider using this digital counter?

A: It's ideal for situations where precise, highly visible digital counting is needed, such as during production tracking, machine cycle monitoring, batch processing, event attendance tracking, or people counting in public facilities.

Q: Where can the four-digit counter be effectively utilized?

A: Its compact nature and clear display make it suitable for factories, assembly lines, warehouses, event venues, public buildings, and any industrial or commercial location requiring reliable counting solutions.

Q: What interfaces does the counter offer for data communication?

A: The counter provides RS-232 and RS-485 (MODBUS) communication ports, allowing seamless integration into existing automation systems and data networks for real-time monitoring and control.

Q: How does this counter benefit operational monitoring?

A: With its bright, easily readable LED digits and versatile connectivity, it enhances productivity and process transparency, allowing operators to monitor counts and processes at a glance, reducing errors and manual intervention.

Q: What is the process for configuring the input voltage range?

A: The input voltage range-either 0-5V or 1-5V-is factory set based on user requirements before delivery. Ensure to specify your preferred range when ordering to match your application's input signal.

Send Inquiry

Get a Price/Quote

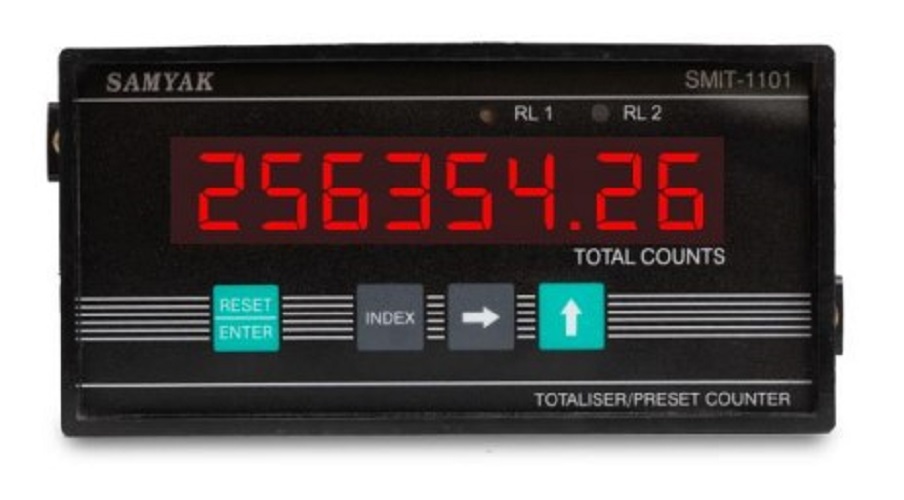

8 Digits Counter SMIT 1101

Price: 7500.0 INR /Unit

Request To Call Back

Product Details:

Equipment Type Digital Counter
Accuracy High accuracy
Application Preset Counter
Automation Grade Semi-Automatic
Capacity 8 Digits
Delivery Time 2 Week
Dimension (L*W*H) 144 mm (W) X 72 mm (H) X 160 mm (D) Yard
Display Type 7 Segment Digital LCD Display
Features Manual Reset Button, High visibility display, Easy panel mounting
Frequency 50 Hz
Humidity 0% - 85% RH (Non-condensing)
Interface Type Terminal Block
Machine Weight 80 g
Main Domestic Market All India
Max Height 42 mm
Measuring Range 00000000 to 99999999
Minimum Order Quantity 1
Mounting Type Panel Mount
Operating Voltage 220V AC
Price 7500.0 INR
Resolution 1 count
Response Time Instant
Temperature -10C to +50C
Unit of Measure Unit/Units
Unit of Price Unit/Units
Usage Industrial counting and tally applications

This is an 8-digit Counter based on Microcontroller.

Main features of unit:

INPUT: Potential free contact/Proximity Switch: PNP or NPN

DISPLAY: 8-digit 7-Segment Red LED Display. 0.56

Features of the Counter:

Non-resetable 8-digit counter saved in NVRAM.

All parameters are stored in non-volatile ram.

Reset: Through Front Key or remote input

Counting: Up/Down programmable

Front Reset: Enable/disable thro Keyboard or lock on back panel

Preset: Enable/Disable thro Keypad

KEYPAD: Four Keys Membrane Keypad

POWER SUPPLY: 115V/230V AC (Field selectable)/12-24 VDC

OPTIONS: i) One Preset Relay ii) Serial: RS232 or RS485

ENCLOSURE: Metalised DIN Standard (General Purpose), Panel Mounting type

DIMENSIONS: OUTER: 144 mm (W) X 72 mm (H) X 160 mm (D)

High-Precision Counting for Industrial Needs

Engineered for industrial automation and precise counting tasks, the SMIT 1101 digital counter delivers dependable performance. Its 8-digit capacity, rapid response, and manual reset function support a wide range of applications while maintaining consistent accuracy.

User-Friendly Design and Installation

The SMIT 1101 features a high-visibility 7-segment digital LCD display for effortless reading, even at a distance. Its compact form and panel-mount design simplify integration into existing control panels, suited for diverse environments and applications.

Durable Performance Across Conditions

Built with a rugged ABS body and protected by IP40 rating, this counter functions reliably in demanding conditions. It withstands temperature fluctuations and high humidity, maintaining performance over a service life of up to 10 million counts.

FAQ's of 8 Digits Counter SMIT 1101:

Q: How does the SMIT 1101 counter operate and what input does it require?

A: The SMIT 1101 operates by receiving electrical pulse inputs, which increment the count displayed on its LCD screen. A mechanical counting option is also available for specific applications.

Q: What makes the SMIT 1101 suitable for industrial automation?

A: Its high counting accuracy, instant response time, and robust ABS construction make the SMIT 1101 ideal for automation. The device handles up to 10 million counts, ensuring long-term reliability in production and preset counting operations.

Q: When should the manual reset button be used?

A: The manual reset button should be used whenever you wish to return the displayed count to zero, such as at the end of a batch or shift, or before starting a new counting operation.

Q: Where can the SMIT 1101 be installed?

A: Designed for panel mounting, the SMIT 1101 requires a cutout measuring 38 x 75 mm. Its compact dimensions ensure it fits seamlessly into control panels in industrial environments.

Q: What benefits does the 7-segment digital LCD display provide?

A: The 7-segment LCD display ensures high visibility and clear reading of all eight digits, allowing quick and accurate monitoring of counts in real time.

Q: How does the SMIT 1101 ensure operational durability?

A: With an ABS body, IP40 protection, and reliable operation in 0%-85% RH and -10C to +50C, the SMIT 1101 is engineered to perform consistently in tough industrial conditions.

Q: What processes or applications can benefit from the SMIT 1101 digital counter?

A: The SMIT 1101 is ideal for preset counters, tally operations, or any industrial automation process that requires reliable, accurate counting and easy reset functionality.
