Jumbo LED Remote Display (4 inch 4 digits & IP65 or above)

Send Inquiry

Request To Call Back

Jumbo LED Remote Display (4 inch 4 digits & IP65 or above)

Name: Jumbo LED Remote Display (4 inch 4 digits & IP65 or above)
Brand: SAMYAK INSTRUMENTATION PVT LTD
Price: 12500.0 INR
Availability: InStock

Price 12500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Jumbo LED Remote Display (4 inch 4 digits & IP65 or above) Specification

Usage
Auxiliary/Additional Display (with larger digits) for: 1) Process Values: Temperature, Pressure etc. 2) Electrical parameters: Power factor/Voltage/Current. 3) Weight Indicator. 4) Counter

Weight
500 Grams (g)

Dimension (L*W*H)
395 (W) mm x 135 (H) mm x 65 (D) mm Millimeter (mm)

Color
Colors of Display: Red

Operate Method
Microcontroller based (Operates via digital signals using RS232/RS485/USB/Ethernet/wireless interfaces for real-time data display)

Material
Enclosure: General Purpose Metallic powder coated

Product Type
Industrial Digital Display Unit or Large LED Process Indicator

Connection
Serial (RS232/RS485), ASCII/MODBUS, Wireless, Ethernet, USB

Power
110-230VAC Volt (v)

Application
Industrial and commercial monitoring, including real-time production data, weight measurement, temperature and humidity display, transport and logistics information, and public numeric displays. They provide clear, long-distance visibility and integrate easily with automation and control systems.

Function
A Jumbo Display is a large LED indicator used to show real-time data such as production count, weight, temperature, or flow from controllers or sensors, ensuring clear visibility from long distances in industrial environments.

Size
2 inches to 24 inches

Jumbo LED Remote Display (4 inch 4 digits & IP65 or above) Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
4 Week

About Jumbo LED Remote Display (4 inch 4 digits & IP65 or above)

Jumbo displays are large electronic systems that presentcritical real-time datausing high-brightness LEDs.
Designed for long-distance viewing, they ensuretimelyandclear information accessfor multiple operators in industrial settings.
A standard jumbo 7-segment display can show numeric data such ascounts,weights, ortemperatures.
With LED technology, these displays offersuperior brightness,energy efficiency, andclear visibility, even outdoors or under strong lighting.
The jumbo 7-segment display is the most common solution for presentingnumerical data, due to its clear, high-contrast digits. It is ideal for showing: Production Counts, Clocks and Timers, Temperature and humidity, Weights and Measurements, etc.
Available indigit sizes from 2 inches to 24 inches, our Jumbo 7-segment LED displays ensure excellent readabilityeven from over 100 meters away.
General Specifications:
Input: 4-20 mA
Display range: -1999 to 9999
KB: 4-keys
Configurable parameter: Zero, Full scale
Display: 7-Segment LED
Size of Display digits: 2.3, 4", 6
Number of Digits: 4
Colors of Display: Red
Output: 4-20 mA / 0-10 VDC
Three Alarm Relays

Large, High-Visibility Display for Industrial Needs

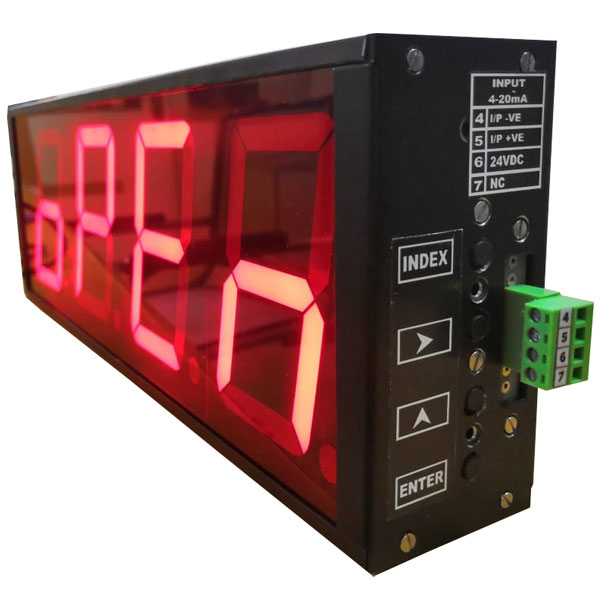

The Jumbo LED Remote Display features impressive 4-inch tall red digits, making it perfect for environments where clarity and visibility are vital. With IP65-rated protection, it withstands dust and water, allowing for reliable use in demanding industrial or outdoor locations. Its robust construction ensures performance and durability, even in challenging conditions.

Flexible Integration and Connectivity Options

Designed for seamless integration, the display supports a range of input options including RS232, RS485, MODBUS, Ethernet, USB, and wireless communication. This makes it highly adaptable for real-time data monitoring in automation systems, weight measurement stations, and manufacturing units needing instant display of key numerical information.

Customizable Applications Across Multiple Sectors

Whether tracking process variables, monitoring electrical parameters, or displaying production counts, this display is engineered for versatile use. Its broad compatibility and ease of installation make it valuable for industries such as manufacturing, logistics, utilities, and public information systems, ensuring critical data is always visible where it matters most.

FAQ's of Jumbo LED Remote Display (4 inch 4 digits & IP65 or above):

Q: How is the Jumbo LED Remote Display typically used in industrial settings?

A: This display serves as an auxiliary or main indicator for key process variables-such as temperature, pressure, voltage, current, weight, or production counts. It is ideal for environments requiring highly visible real-time data, directly interfacing with controllers or sensors to present actionable information to operators and teams.

Q: What are the benefits of using a 4-inch digit display for monitoring?

A: The large 4-inch digits provide superior readability from long distances or across large factory floors, minimizing operator error and ensuring real-time data remains accessible even in busy or low-visibility settings. Its high-brightness LEDs further enhance visibility in both indoor and outdoor environments.

Q: When should I use the IP65-rated Jumbo Display?

A: This display is best employed in locations that may encounter dust, water splashes, or demanding weather conditions. Its IP65 rating ensures protection, making it suitable for factories, warehouses, logistics yards, and outdoor installations.

Q: What connection options are available for integrating the display into my system?

A: The Jumbo LED Remote Display supports RS232, RS485 (ASCII/MODBUS), USB, Ethernet, and wireless connections. This wide compatibility allows seamless integration with a variety of automation and process control systems, ensuring timely and accurate data display from your existing equipment.

Q: Where can this display be installed for optimal results?

A: Install the display in locations where operators or staff need clear and immediate access to key numeric data-such as production lines, weighbridges, control rooms, loading docks, public waiting areas, and logistics terminals. Its robust, powder-coated metal enclosure makes it ideal for challenging industrial settings.

Q: How does the microcontroller-based operation benefit my process monitoring?

A: Microcontroller-based architecture enables precise, fast processing of data received from sensors or control systems. This allows the display to update in real time, ensuring the values shown are always current and reducing delays in decision-making during critical operations.
